Product Details: Place of Origin:China Brand Name: YUANFANG Certification: ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008 Model Number: ASTM A269 TP316L Payment & Shipping Terms: Minimum Order Quantity: 1000kgs Price: Negotiable Packaging Details: Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case Delivery Time: Depends on quantity Payment Terms: T/T, L/C Supply Ability: 1000 tons per month

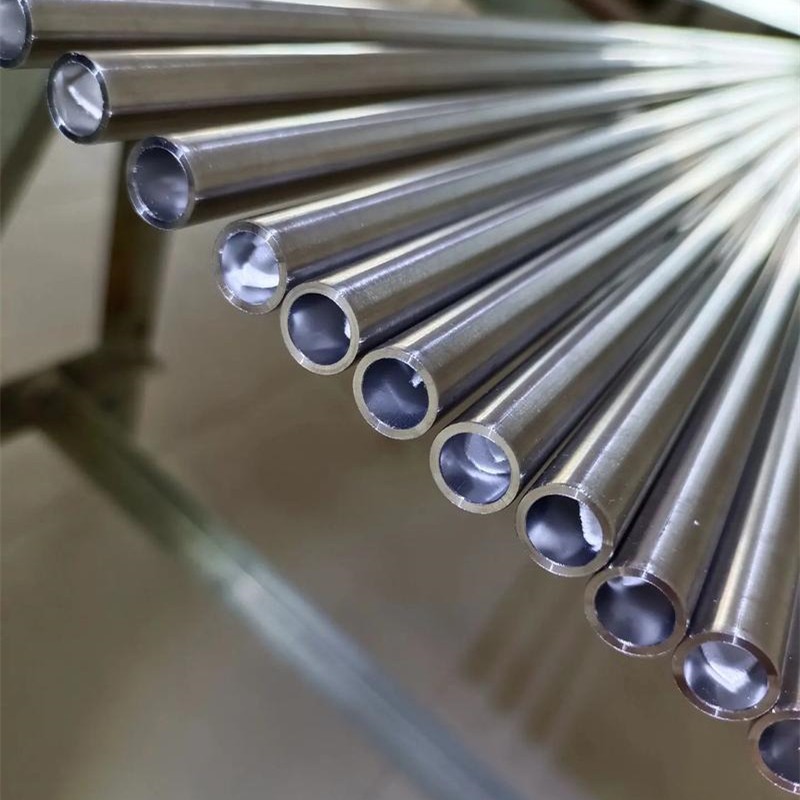

ASTM A269 TP316L Stainless Steel Bright Annealed SMLS Tube for Straw Sucking Cup
Product Parameters
Description | ||
Item | Round aisi tube prices 201 304 304l 316 stainless steel pipe/tube | |
Steel grade | 200/300/400 series | |
Standard | ASTM A213,A312,ASTM A269,ASTM A778,ASTM A789,DIN 17456, DIN17457,DIN 17459,JIS G3459,JIS G3463,GOST9941,EN10216, BS3605, GB13296 | |
Material | 304,304L,309S,310S,316,316Ti,317,317L,321,347,347H,304N,316L, 316N,201, 202 | |
Surface | Polishing,annealing,pickling,bright | |
Type | hot rolled and cold rolled | |
stainless steel round pipe/tube | ||
Size | Wall thickness | 1mm-150mm(SCH10-XXS) |
Outer diameter | 6mm-2500mm (3/8"-100") | |
Delivery time | Prompt delivery or as the order quantity. | |
Package | Standard export seaworthy package,or as required. | |
Application | Widely used in petroleum,foodstuff,chemical industry,construction, electric power,nuclear,energy,machinery,biotechnology,paper making,shipbuilding,boiler fields. Pipes also can be made according to the customer's required. | |
Composition ranges for 316 grade of stainless steels
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 316 | Min | - | - | - | 0 | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.08 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316L | Min | - | - | - | - | - | 16.0 | 2.00 | 10.0 | - |
| Max | 0.03 | 2.0 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | 0.10 | |
| 316H | Min | 0.04 | 0.04 | 0 | - | - | 16.0 | 2.00 | 10.0 | - |
| max | 0.10 | 0.10 | 0.75 | 0.045 | 0.03 | 18.0 | 3.00 | 14.0 | - |
Grade specifications for 316 grade stainless steels
| Grade | UNS No | Old British | Euronorm | Swedish SS | Japanese JIS | ||
| BS | En | No | Name | ||||
| 316 | S31600 | 316S31 | 58H, 58J | 1.4401 | X5CrNiMo17-12-2 | 2347 | SUS 316 |
| 316L | S31603 | 316S11 | - | 1.4404 | X2CrNiMo17-12-2 | 2348 | SUS 316L |
| 316H | S31609 | 316S51 | - | - | - | - | - |
Usage
Pipeline Transport, Boiler Pipe, Hydraulic/Automobile Pipe, Oil/Gas Drilling, Food/Beverage/Dairy Products, Machinery Industry, Chemical Industry, Mining, Construction & Decoration, Special Purpose
