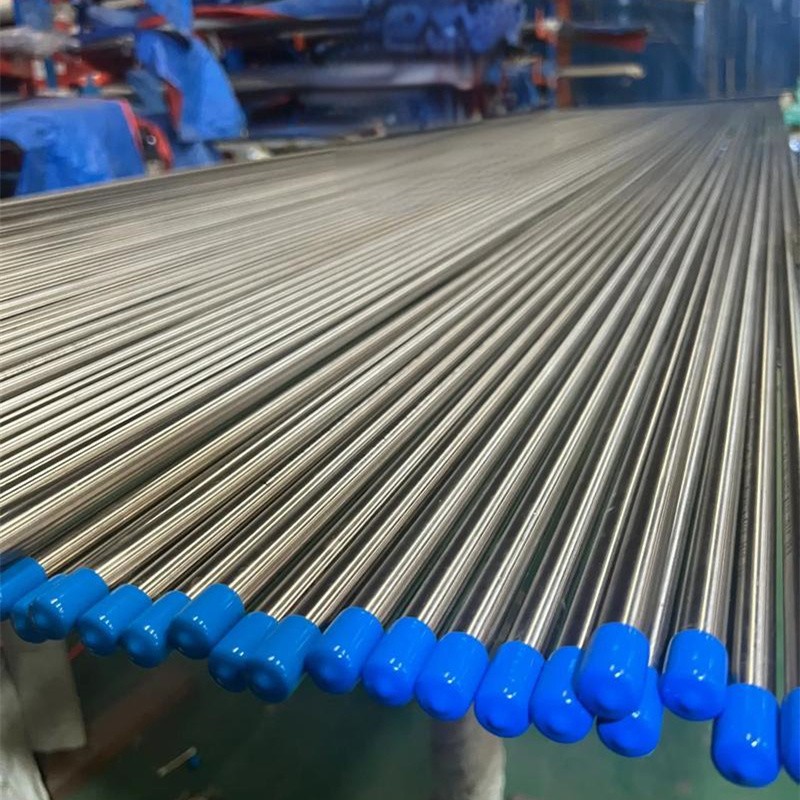

ASTM A269 TP316L Stainless Steel Seamless Dry Coil Tube Cooling Heating




Product Description:

ASTM A269 TP316L STAINLESS STEEL SMLS DRY COIL TUBE Cooling Heating

ASTM A269 TP316L is a standard specification for seamless stainless steel tubing. It specifically covers seamless tubes made from austenitic stainless steel grade TP316L, which is a low carbon version of TP316.
The term "coil tube" refers to the shape of the tubing, which is typically supplied in coils rather than straight lengths. This allows for easier handling and installation in certain applications.
ASTM A269 TP316L stainless steel seamless coil tube is a high-quality tubing option that is commonly used in industries such as oil and gas, chemical, and petrochemical. It offers excellent corrosion resistance, high strength, and good formability.

A dry coil cooling/heating system is a type of air conditioning and heating system that utilizes a dry coil for heat transfer. Unlike traditional systems that use a wet coil, which relies on condensation to transfer heat, a dry coil system uses a direct heat transfer process.
In a dry coil system, the coil is not wetted with water or any other liquid. Instead, the coil is designed to have a large surface area and is made of materials that are highly conductive to heat. This allows for efficient heat transfer between the coil and the surrounding air.
During the cooling mode, the dry coil system works by passing air over the coil, which absorbs heat from the air and cools it down. The cooled air is then distributed throughout the space, providing a comfortable environment. In the heating mode, the process is reversed, with the coil absorbing heat from a heat source and transferring it to the air passing over it.
One advantage of a dry coil system is its energy efficiency. Since there is no need for water or other liquids to be used for heat transfer, there is no energy wasted in the evaporation or condensation process. This can result in lower energy consumption and operating costs.
Additionally, a dry coil system can provide precise temperature control and faster response times compared to traditional systems. The absence of water on the coil allows for more accurate temperature sensing and faster heat transfer, resulting in quicker heating or cooling of the space.





ASTM A213 TP316L Seamless Stainless Steel Coil Tube


Outside Diameter3.2-25.4mm
Wall Thickness0.2-2.5mm
LengthAs customer's requirement; In coil or in straight.
StandardA213, A269,etc.
GradeTP304, TP304L, TP316, TP316L, TP321, TP247H, etc.
Delivery ConditionPickled, Polished, Bright Annealed
TechniqueSeamless/Welded
ApplicationAutomotive industry, Aircraft/Aerospace, Instrumentation & Electrical, Chemical Industry, etc.
MarkingLOGO, Standard, Grade, Size, Heat Number.
PackageWoven bag, wooden cases, or as per customer's requirement.
Quality RequirementMill Test Certificate (EN 10204/3.1); Third Part Inspection is acceptable.








Specifications - Stainless Steel 316/316L

CCrMnMoNiPSSi
Max
Max

MaxMaxMax
0.04%16% - 20%2.00%2% - 3%10% - 15%0.04%0.03%0.75%







ASTM A269 TP316L stainless steel seamless (SMLS) dry coil tubes are commonly used in various applications, including:
1. Heat Exchangers: The high corrosion resistance and excellent heat transfer properties of TP316L stainless steel make it suitable for use in heat exchangers. The seamless construction of the coil tubes ensures efficient and reliable heat transfer.
2. Chemical Processing: TP316L stainless steel coil tubes are widely used in chemical processing industries for transporting corrosive chemicals and fluids. The high resistance to corrosion and pitting makes it suitable for handling harsh chemicals.
3. Oil and Gas Industry: These coil tubes are used in oil and gas production and processing facilities for various applications, including wellhead control panels, hydraulic control systems, and chemical injection systems. The high strength and corrosion resistance of TP316L stainless steel make it suitable for these demanding environments.
4. Pharmaceutical Industry: The clean and hygienic properties of TP316L stainless steel make it suitable for use in the pharmaceutical industry. The seamless construction of the coil tubes ensures smooth and easy cleaning, making them ideal for applications that require high levels of cleanliness.
5. Food and Beverage Industry: TP316L stainless steel coil tubes are commonly used in the food and beverage industry for applications such as heat exchangers, pasteurizers, and sterilizers. The high corrosion resistance and hygienic properties of stainless steel make it suitable for handling food and beverage products.
6. Power Generation: TP316L stainless steel coil tubes are used in power generation plants for applications such as condensers, heat exchangers, and boiler tubes. The high temperature and corrosion resistance of stainless steel make it suitable for these high-pressure and high-temperature environments.
