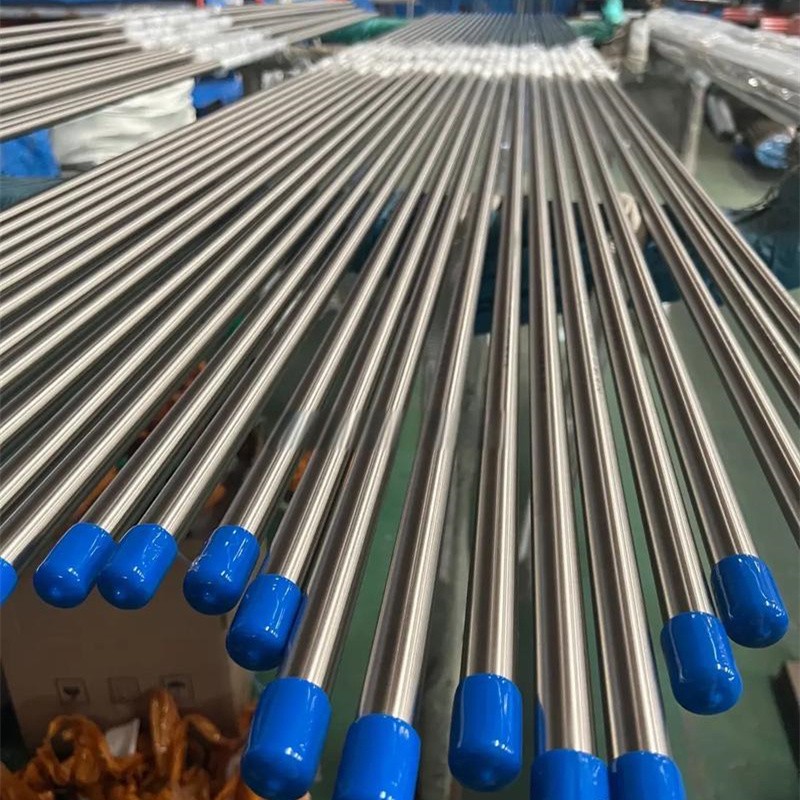

ASTM A269 TP304 Stainless Steel Bright Annealed Tube
Overview
ASTM A269 TP304 Bright Annealed Tube is an ASTM A269 compliant bright annealed tube made primarily from TP304 stainless steel. This tube typically has excellent corrosion resistance and mechanical properties for applications used in high temperature and corrosive environments. It is bright annealed for a shiny surface and smooth interior, which facilitates the transfer and cleaning of fluids within the pipe. Common applications include chemical, petroleum, pharmaceutical, food processing and medical equipment.
Chemical Composition of ASTM A269 TP304
Grade | Ni | Cr | Mn | C | Si | S | P | |
TP304 | Min | 8.0 | 18.0 | |||||
Max | 12.0 | 20.0 | 2.00 | 0.08 | 1.00 | 0.03 | 0.045 |
Grade Specifications for TP304
Grade | UNS | JIS | BS | EURONORM |
304 | S30400 | SUS304 | 304S31 | X5CRNI18-10 |
Uses&Application
1>.Chemical Processing: These tubes are used in chemical plants for transporting corrosive chemicals and gases, as they offer excellent resistance to a wide range of corrosive media.
2>.Pharmaceutical Industry: The bright annealed surface and smooth internal finish of these tubes make them suitable for pharmaceutical applications, where hygiene and cleanliness are critical. They are used in processes like sterilization, drug formulation, and fluid transfer.
3>.Food and Beverage Industry: These tubes are suitable for food and beverage processing applications that require high levels of hygiene and cleanliness. They are used in dairy processing, brewing, beverage production, and food processing equipment.
