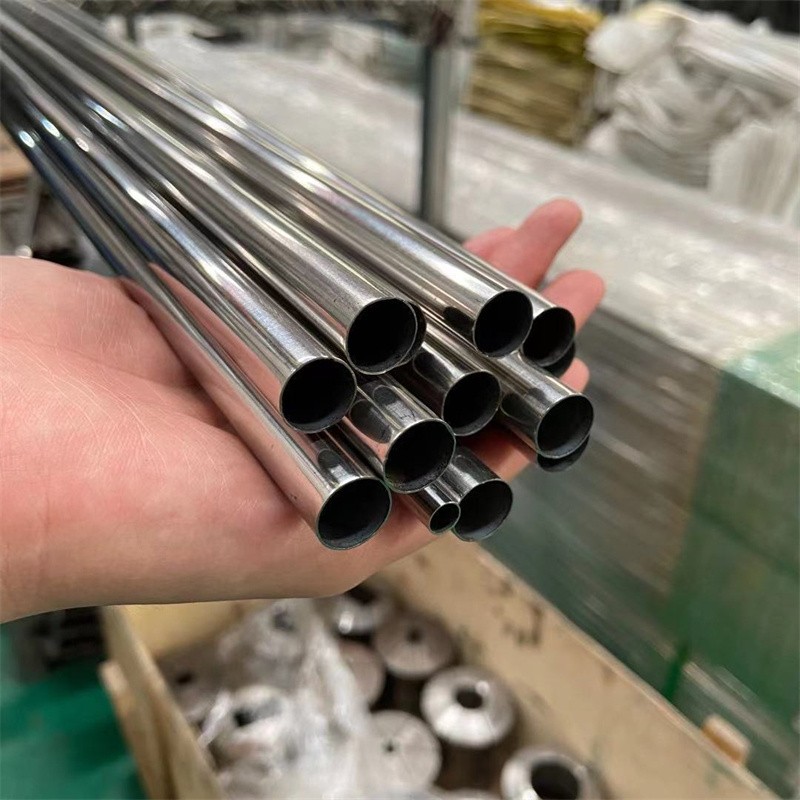

ASTM A269 TP316L Stainless Steel Bright Annealed Tube Polish Finishing 320 Grit




Product Description:

ASTM A269 / ASME SA269 TP316L Bright Annealed Stainless Steel Tube Polish Finishing


The tubing specified in ASTM A269 can be produced through either the seamless or welded process. The common surface finishes include annealed, pickled, or bright annealed. SS304 and SS316 are the two most common stainless steel grades used for stainless steel tubing system. Stainless steel offers several benefits, including excellent resistance to corrosion, easy cleaning, minimal maintenance needs, and affordability. While the initial cost of stainless steel might be higher compared to other metals, stainless steel tubing provides cost advantages in terms of lower maintenance and replacement expenses.



Polished stainless steel tubes offer several advantages:

1. Aesthetic appeal: Polishing gives stainless steel tubes a shiny and elegant appearance, making them visually appealing and suitable for various applications.

2. Corrosion resistance: Stainless steel itself is known for its excellent corrosion resistance, and polishing further enhances its ability to withstand corrosion, rust, and stains, making it suitable for use in harsh environments.

3. Easy to clean: The smooth surface of polished stainless steel tubes is easy to clean, making them low maintenance and ideal for applications that require sterile conditions, such as in the medical or food industries.

4. Durability: Stainless steel, in general, is a durable material, and polishing adds an extra layer of protection against scratches and wear, extending the lifespan of the tubes.

5. Versatility: Polished stainless steel tubes are versatile and can be used in various industries, including architecture, automotive, manufacturing, and more.





Stainless Steel Polished Grits

  • 120 grit

  • 180 grit

  • 320 grit

  • 400 grit

  • 600 grit

  • 800 grit





Other Finishing processes:

BA: Bright Annealing

MP: Mechanical polishing

BA: Bright Annealing

EP: Electro Polishing




Equivalent Grades of Stainless Steel 316L Tubes

STANDARDWERKSTOFF NR.UNSJISBSGOSTAFNOREN
SS 316L1.4404 / 1.4435S31603SUS 316L316S11 / 316S1303Ch17N14M3 / 03Ch17N14M2Z3CND17‐11‐02 / Z3CND18‐14‐03X2CrNiMo17-12-2 / X2CrNiMo18-14-3



Chemical Composition of Stainless Steel 316L Tubes

GradeCMnSiPSCrMoNiFe
SS 316L0.035 max2.0 max1.0 max0.045 max0.030 max16.00 - 18.002.00 - 3.0010.00 - 14.0068.89 min



Mechanical Properties of Stainless Steel 316L Tubes

DensityMelting PointTensile StrengthYield Strength (0.2%Offset)Elongation
8.0 g/cm31399 °C (2550 °F)Psi – 75000 , MPa – 515Psi – 30000 , MPa – 20535 %



Physical Properties of Stainless Steel 316L Tubes


Grade

Density
(kg/m3)

Elastic Modulus
(GPa)
Mean Co-eff of Thermal Expansion (µm/m/°C)Thermal Conductivity
(W/m.K)

Specific Heat 0-100°C
(J/kg.K)

Elec Resistivity
(nΩ.m)
0-100°C0-315°C0-538°CAt 100°CAt 500°C
316/L/H800019315.916.217.516.321.5500740



Applications
Food preparation equipment particularly in:
1. chloride environments
2. Fasteners
3. Pharmaceuticals
4. Marine applications
5. Architectural applications
6. Medical implants which comprise pins, screws and orthopedic implants like total hip and knee replacements.
