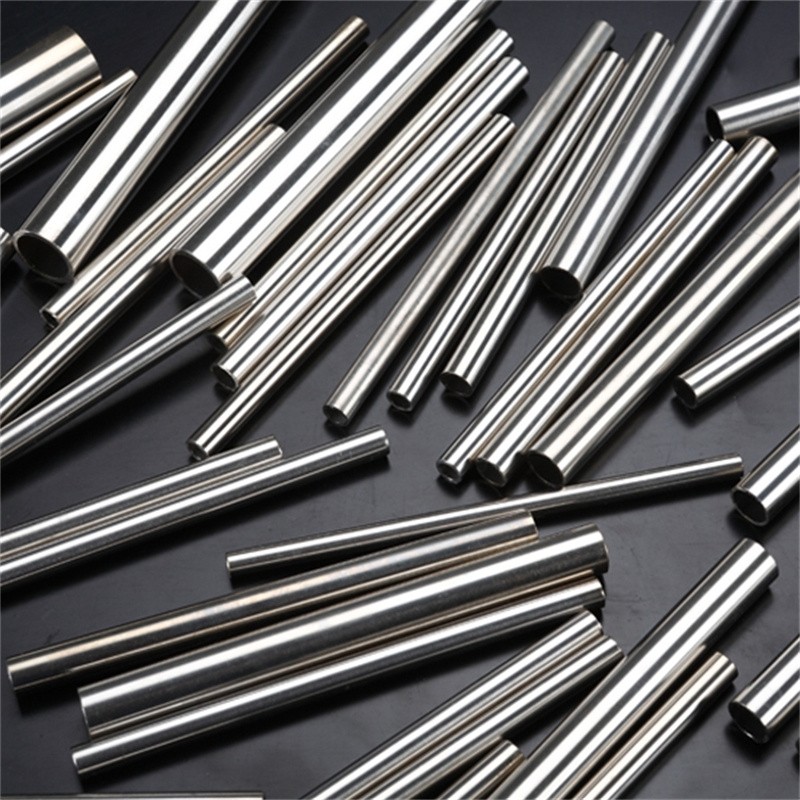

ASTM A269 TP304 TP304L TP316 TP316L Stainless Steel Capillary Tube, Medical Tube

Product Details:
Place of Origin:China
Brand Name:	YUANFANG
Certification:	ABS, GL, DNV, NK, PED, AD2000, GOST9941-81, CCS, ISO 9001-2008
Model Number:	ASTM A269 TP316L
Payment & Shipping Terms:
Minimum Order Quantity:	1000kgs
Price:	Negotiable
Packaging Details:	Ply-wooden Case /Iron Case/ Bundle with plastic Cap/Woven Case
Delivery Time:	Depends on quantity
Payment Terms:	T/T, L/C
Supply Ability:	1000 tons per month

Product Description:

ASTM A269 TP304 TP304L TP316 TP316L Stainless Steel Capillary Tube, Medical Tube

Stainless Steel Capillary Tubes have good flexibility, corrosion resistance, high temperature resistance, abrasion resistance, tensile resistance, water resistance and provide excellent electromagnetic shielding performance.

Stainless Steel Capillary Tubes are used for the production of pressure equipment and systems, measuring technology equipment, specialized food processing equipment in the food and nitrogen industry, ship construction, parts responsible for furnaces and boilers, and hydrogen discharge systems.

SS316 Capillary Tube is the standard molybdenum bearing grade tube. It provides better corrosion resistant properties than SS304 Capillary Tube, especially higher resistance to pitting and crevice corrosion in chloride environments.

Specification:

OD	0.35mm to 12 mm
Thickness	0.08mm to 2mm
Specification	ASTM A269 / ASME SA269
Material	SS 304, SS 304L,SS 316,SS 316L
Finish	Pickled, Polished, Bright Annealed, Electrolytic Polished
Form	Round, Or As Customized
Type	Welded, Seamless

Features:

High strength

Good formability

Resistant to high pressure

Resistant to high temperature

Resistant to high mechanical stresses

Chemical Composition:

Grades	C	Mn	P	S	Si	Cr	Ni	Mo
TP304	0.08	2	0.045	0.03	1	18-20	8-11	-
TP304L	0.035	2	0.045	0.03	1	18-20	8-13	-
TP316	0.08	2	0.045	0.03	1	16-18	11-14	2-3
TP316L	0.035	2	0.045	0.03	1	16-18	10-14	2-3

Applications:

Chemical and Petrochemical

Renewable Energy

Food and Beverage

Pulp and Paper

Pharmaceutical

Marine Industry

Oil and Gas

Power Generation

Medical Industry
